Greater flexibility of shooting style for applications such as documentaries, sports and news

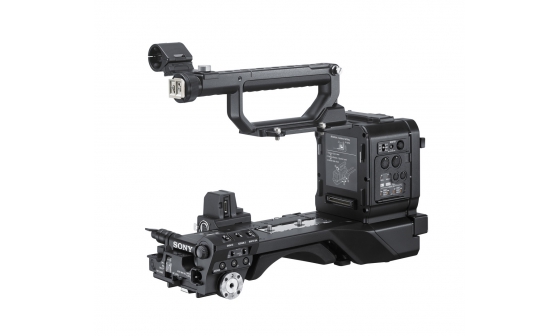

The CBK-55BK build-up kit enables one-person operation of the PMW-F55 and PMW–F5 CineAlta cameras, making it easy to achieve a shooting style to suit a variety of needs while maintaining the familiar, easy-to-use interface features of traditional shoulder camcorders.
Good weight balance
Ergonomic design usable with any lenses and featuring an adjustable shoulder pad and front block control.
DWX 數字無線音頻插槽
為 DWX 系列 DWR-S02D 2 通道數字無線接收器提供一個插槽。
屬性
Two adjustable blocks for good weight balance
Shoulder pad has 33m adjustable range.Front block with all control buttons has 37mm adjustable range.
RAW recording functionality
The build-up kit also supports the AXS-R5 for 2K/4K 16bit RAW recording up to 240 fps in 2K.
Battery adaptor*
Battery adaptor includes DC input, Hirose 1.8A DC output and D-TAP 4.17A (50W) DC output*.* D-TAP DC output not available when using AXS-R5.
Easy to attach/detach mechanism
該套件易于安裝拆裝，有了它您可以方便地將PMW-F55/F5 用作全肩扛式攝像機，或按原始風格使用，為您的拍攝風格提供更多靈活性。
Support of wireless audio receiver
The build-up kit includes an audio section and input/output section at the rear side, offering support for wireless audio, with a familiar design common to main broadcast camcorders.
Lens support
Using standard PL lenses or common B4 2/3-inch broadcast lenses with the LA-FZB1 or LA-FZB2* will suit a wide variety of applications.* When using the LA-FZB2, the original handle supplied with the camera needs to be used.
Supplied top handle
The new improved top handle comes with a microphone holder and viewfinder cable protection.It also provides cover for the fan input on the top of the body to protect against rain or dust.The handle is also able to attach the CBK-WA100 wireless adaptor without needing a USB connection.
支持 DWX 系列無線音頻接收器
該套件的后側有一個音頻接收器插槽和輸入/輸出接口，為 DWX 系列無線音頻接收器提供支持，采用了主流廣播攝錄一體機常見的熟悉設計。該插槽式接收器可與多種 DWX 系列發射器無縫配合，形成了全數字音頻工作流程。
